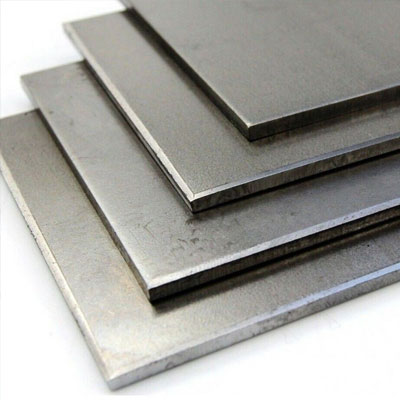

Mild steel sheets, plates, and coils are essential components in construction, manufacturing, and various industrial applications. They are made from low-carbon steel, known for its relatively low strength and malleability, making it easy to shape, weld, and fabricate. Mild steel sheets are flat pieces of steel with a thickness ranging from a few millimeters to several centimeters, while plates are thicker, typically exceeding 3 millimeters. Coils are continuous rolls of steel sheet wound into a cylindrical shape.
Our Features
-
-
Durability
-
Cost-Effectiveness
-
Fire Resistance
These mild steel products find application in a wide range of industries, including automotive, construction, machinery, and shipbuilding. They are used for manufacturing structural components, such as beams, columns, and plates, as well as for making tanks, pipes, and various machinery parts. Mild steel sheets, plates, and coils are available in various sizes, thicknesses, and grades to suit different requirements. They are valued for their affordability, versatility, and ease of fabrication, making them indispensable materials in modern manufacturing and construction practices.

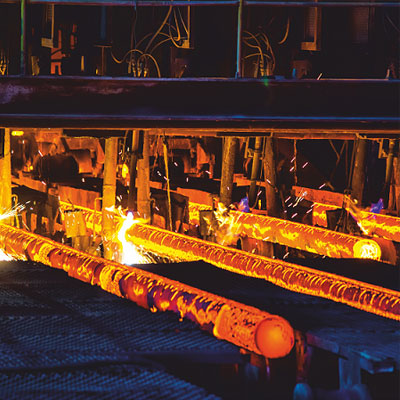

Manufacturing process of Mild Steel Sheet
There are many variations you need to.
- Raw Materials
- Ironmaking
- Steelmaking
- Casting
- Hot Rolling
- Cooling and Conditioning
- Finishing
Throughout the manufacturing process, quality control measures are implemented to ensure that the steel bars meet the required specifications for composition, mechanical properties, and surface finish. This involves regular testing and inspection of the raw materials, intermediate products, and finished bars to ensure consistency and quality.
Specifications of Mild Steel Plate
| Product | MS Plates |
|---|---|
| Size(mm) | 900-3500(mm) x 2500-12500(mm) |
| Thickness (mm) | 5 to 100(mm) |
| Width (mm) | 900 to 5000(mm) |
| Length | Up to 15000(mm) |
| Price Terms | Ex-Works, FOB, CIF, CFR, CNF |
| Grades | IS 2062 GR A PLATES, IS 2062 GR B PLATES, ASTM A 36 PLATES, SS 400, A283 GR.C, A285 GR.C, DSQ PLATES |
Chemical Composition
| Grade | C | Mn | S | P | Si |
|---|---|---|---|---|---|
| IS 2062 GR.A | 0.23 | 1.5 | 0.05 | 0.05 | 0.4 |
| IS 2062 GR.B | 0.22 | 1.5 | 0.045 | 0.045 | 0.4 |
| ASTM A36 | 0.25 max. | 0.8-1.2. | 0.035 max | .0.035 max | 0.4 max. |
| ASTM A283 Gr.C | 0.24 | 0.90 | 0.04 | 0.035 | 0.40 0.15-0.40 |
| A285 GR.C | 0.16 | 0.4/1.2 | 0.03 | 0.03 | 0.35 |
Mechanical Composition
| Grade | Yield strength (Mpa)(Min) | Tensile strength (Mpa)(Min) | Elongation (%) | IMPACT (Min) | ||||
|---|---|---|---|---|---|---|---|---|
| ＜20mm | 20mm-40mm | ＞40mm | Tensile strength, kis [MPa] | Yield strength, min, kis [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % | ||
| IS 2062 GR A | 250 | 240 | 230 | 410 | - | 23 | - | - |
| IS 2062 GR B | 250 | 240 | 230 | 410 | - | 23 | - | 27J at 0 ° C |
| - | - | - | - | 58-80 [400-550] | 36 [250] | 20 | 23 | - |
| A283 GR.C | 30,000psi [205 MPa] | - | - | 55,000 75,000 psi [380 - 515 MPa] | - | 22% min | 25% min | - |
| A285 GR.C | 205 MPa | - | - | 380-515 MPa | - | - | 27% min | - |
We Export in Countries Likes
UAE, Saudi Arabia, Kuwait, Oman, Bahrain, Qatar, Iran, Sri lanka, Zimbabwe, Sudan, Russia, Kenya, Tanzania, Nigeria, Uganda, Ghana, Peru, Philippines, Jordan, South Africa, Egypt, Turkey, Singapore, Thailand, Malaysia, USA.
Our Application Industry
Powerplant Industry
Defense Industry
Paper Industry
Dairy Industry
Automotive Industry
